Feature:

1.Smooth and uniform lighting.

2.Working temperature-20~+65 degree;

3.Anti-UV，Anti-saltwater:

4.On off or DMX512 Control Version;

Technical:

Materials: Aluminum 6063 and Special Engineering Resin;

Finishing: Anodizing or Powder coating;

Working Temperature:-20~+65 degree;

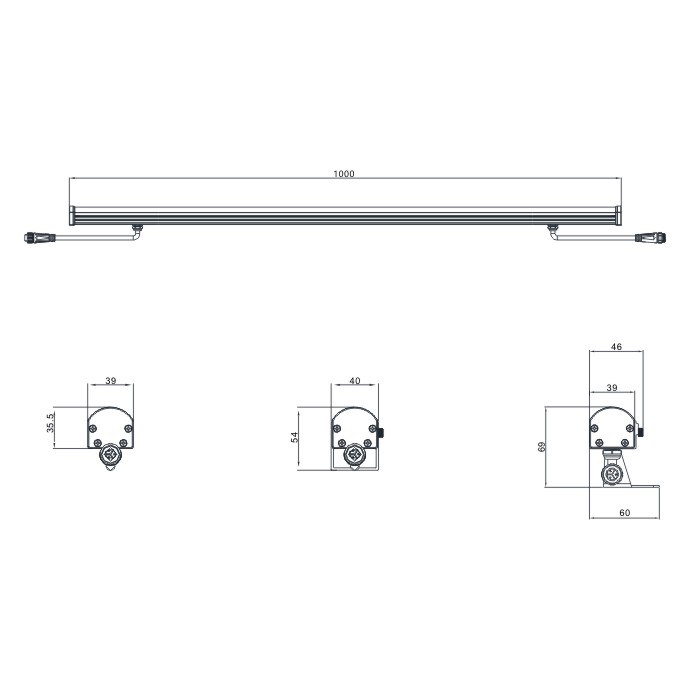

Length: 1000MM/Customized length;

Installation: Surface mounted or Recessed Mounting;

IP67 Waterproof;

ORDER CODE

MODEL POWER(W/M) INPUT LED LUM (LM/M) CONTROL
EFS011B-01 8 24V DC 2835SMD 480LM  On/Off
EFS011B-02 14.4 24V DC 2835SMD 860LM ON/OFF
EFS011B-03 28.8 24V DC 2835SMD 1800LM ON/OFF
EFS011B-04 7.2 24V DC 2835SMD 420LM DMX Control
EFS011B-05 17.28 24V DC 3535SMD – DMX Control
EFS011B-06 15 24V DC 5050SMD – Normal Control

CCT OPTIONAL



Model OPTIONAL COLOR TEMERATURE
EFS011B-01 2300K/2700K/3000K/3500K/4000K/4500K/5000K/5500K/6000K /Red/Green/ Blue/Yellow/Amber/Turquoies
EFS011B-02 2300K/2700K/3000K/3500K/4000K/4500K/5000K/5500K/6001K /Red/Green/ Blue/Yellow/Amber/Turquoies
EFS011B-03 2300K/2700K/3000K/3500K/4000K/4500K/5000K/5500K/6002K /Red/Green/ Blue/Yellow/Amber/Turquoies
EFS011B-04 RGB
EFS011B-05 2300K/2700K/3000K/3500K/4000K/4500K/5000K/5500K/6004K /Red/Green/ Blue/Yellow/Amber/Turquoies
EFS011B-06 RGB

* The CCT are measured with an accuracy of +100K
* The power consumption with tolerance +1W
* Luminous flux tolerance +10%
* Detailed product datasheet contact ECO LITE Sales

ACCESSORIES OPTIONAL

EFSAC001

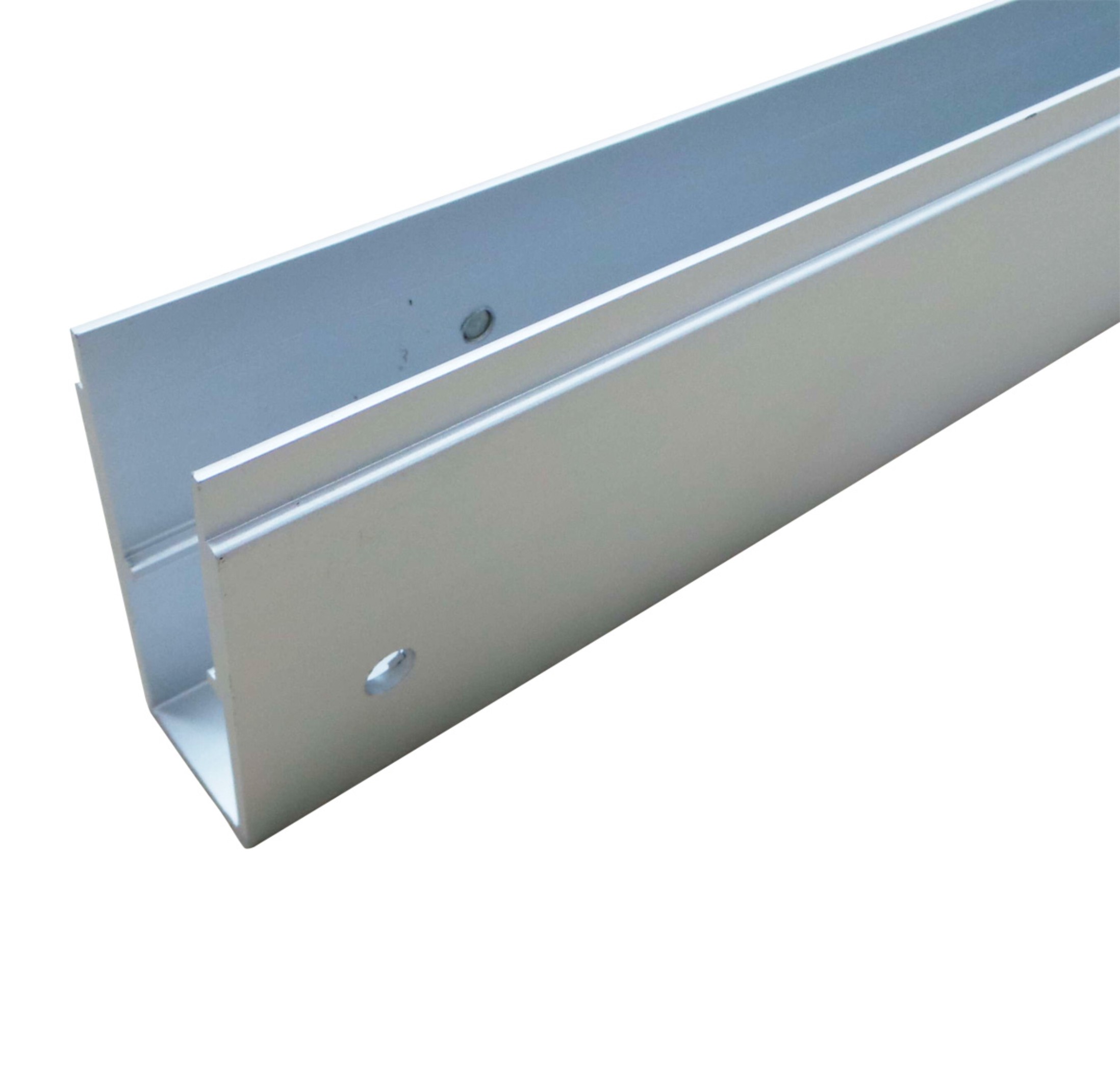

Aluminum Mounting Rail

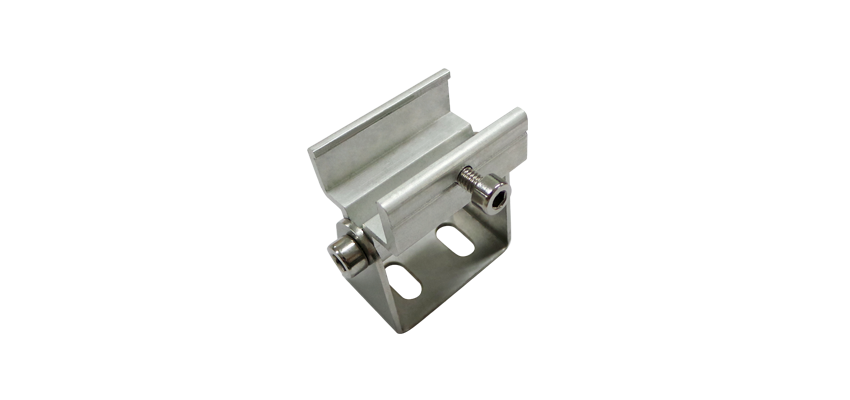

Mounting  Straight, Aluminum

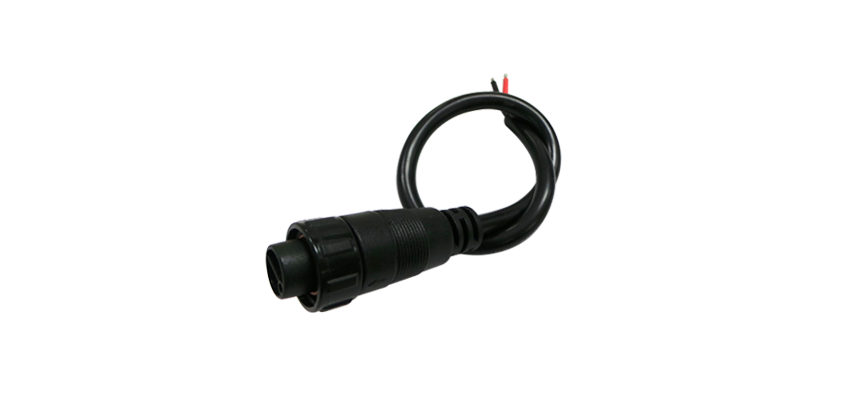

Power Cable,Rubber Cable

End Cap,Zinc plated nickel

Power Cable,Rubber Cable

LED Decoder for normal RGB control

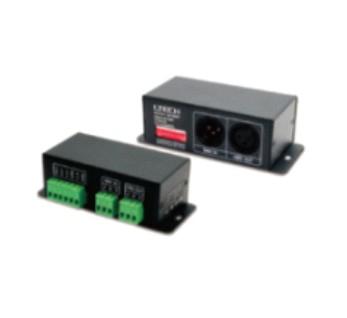

DMX-SPI Signal Decoder

DMX Signal Amplifier

DMX512 Controller
