Project Description
Feature:
1.Smooth and uniform lighting.
2.Working temperature-20~+65 degree;
3.Anti-UV，Anti-saltwater:
4.On off or DMX512 Control Version;
Technical:
Materials: Aluminum 6063 and Special Engineering Resin;
Finishing: Anodizing or Powder coating;
Working Temperature:-20~+65 degree;

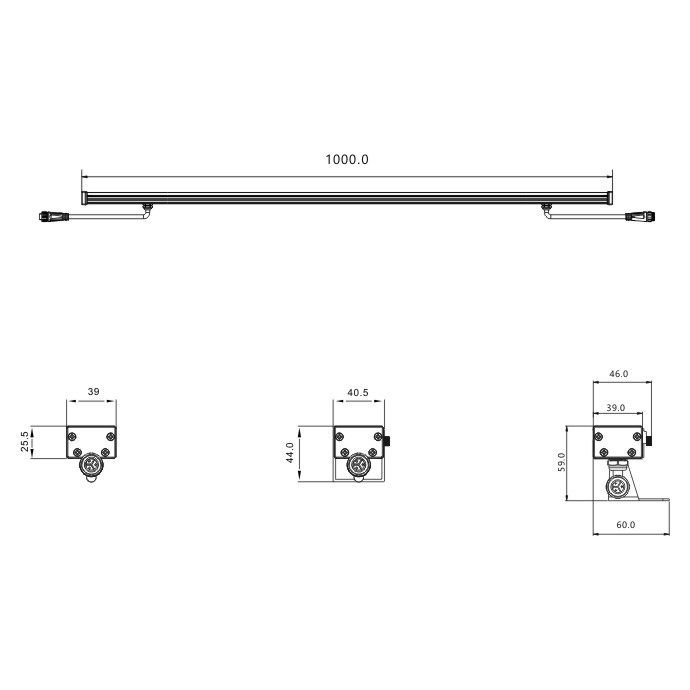

Length: 1000MM/Customized length;
Installation: Surface mounted or Recessed Mounting;
IP67 Waterproof;
ORDER CODE
| MODEL | POWER(W/M) | INPUT | LED | LUM (LM/M) | CONTROL |
| EFS011A-01 | 8 | 24V DC | 2835SMD | 480LM | On/Off |
| EFS011A-02 | 14.4 | 24V DC | 2835SMD | 860LM | ON/OFF |
| EFS011A-03 | 28.8 | 24V DC | 2835SMD | 1800LM | ON/OFF |
| EFS011A-04 | 7.2 | 24V DC | 2835SMD | 420LM | DMX Control |
| EFS011A-05 | 17.28 | 24V DC | 3535SMD | – | DMX Control |
| EFS011A-06 | 15 | 24V DC | 5050SMD | – | Normal Control |
CCT OPTIONAL
| Model | OPTIONAL COLOR TEMERATURE | |||||||
| EFS011A-01 | 2300K/2700K/3000K/3500K/4000K/4500K/5000K/5500K/6000K /Red/Green/ Blue/Yellow/Amber/Turquoies | |||||||
| EFS011A-02 | 2300K/2700K/3000K/3500K/4000K/4500K/5000K/5500K/6001K /Red/Green/ Blue/Yellow/Amber/Turquoies | |||||||
| EFS011A-03 | 2300K/2700K/3000K/3500K/4000K/4500K/5000K/5500K/6002K /Red/Green/ Blue/Yellow/Amber/Turquoies | |||||||
| EFS011A-04 | 2300K/2700K/3000K/3500K/4000K/4500K/5000K/5500K/6004K /Red/Green/ Blue/Yellow/Amber/Turquoies | |||||||
| EFS011A-05 | RGB | |||||||
| EFS011A-06 | RGB | |||||||
* The CCT are measured with an accuracy of +100K
* The power consumption with tolerance +1W
* Luminous flux tolerance +10%
* Detailed product datasheet contact ECO LITE Sales
ACCESSORIES OPTIONAL
Aluminum Mounting Rail
Mounting Straight, Aluminum
Power Cable,Rubber Cable
End Cap,Zinc plated nickel
Power Cable,Rubber Cable
LED Decoder for normal RGB control
DMX-SPI Signal Decoder
DMX Signal Amplifier
DMX512 Controller
