Project Description
DESCRIPTION

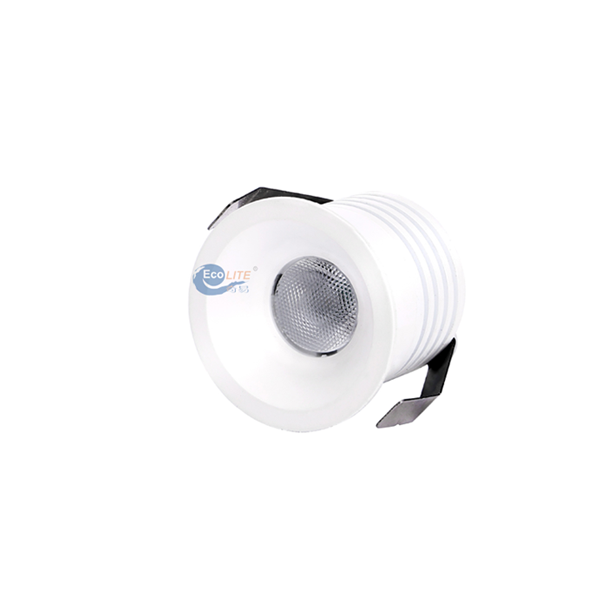

These LED cabinets lighting family is made of aluminum, mainly used in cabinets lighting and decorative lighting.
The light ray is uniform, soft, high brightness, protect our eyes, our cabinet lights are safety low voltage, more energy efficiency, environmental protection and artistically decorated.
ORDER CODE
| MODEL |
POWER (W) |
INPUT | LED | IP |
LUM FLUX |
| EC001A |
3W |
100-240V AC | CREE XP-G | 40 |
150 |
COLOR AND BEAM OPTIONAL
| COLOR (ONE BIN ONLY) | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
| BEAM ANGLE | 15/30/45/60° |

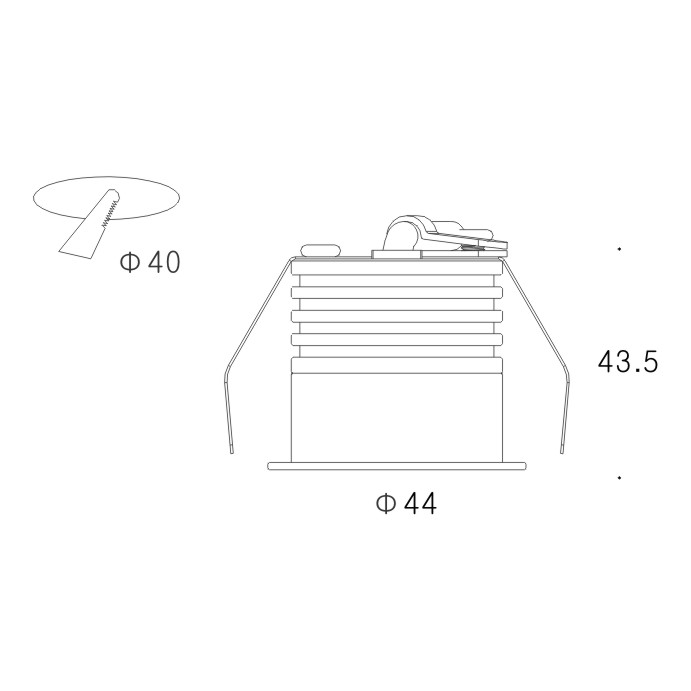

LAMP SIZE
| MODEL |
A (MM) |
B (MM) |
CUTOUT(MM) |
| EC001A |
Φ44 |
43.5 |
Φ40 |
* The CCT are measured with an accuracy of +100K
* The power consumption with tolerance +-0.05W
* Luminous flux tolerance +10%
* Detailed product datasheet contact ECO LITE Sales
